Every other tutorial on this plugin barely scratches the surface or is buried under music nobody wants to hear. This guide covers the full picture — the physics behind it, every control explained, and real production use cases from individual channels all the way to the mastering bus. Built from a direct interview with the developer.
Before touching any controls, you need to understand what makes this limiter work differently at the engineering level — because it changes how you should think about every single knob on it.
Traditional limiters
Look-ahead + brick wall
Looks 1-2ms ahead, finds incoming peaks, reduces gain so the peak hits at 0 dBFS. Strong loudness guarantees. Transients get eaten alive. Music sounds stiff and pumpy when pushed hard.
AL1 approach
Sample-by-sample physics
No look-ahead. Physics laws govern how gain reduction moves — slew rate, jerk, critically damped systems. Works so fast it looks like look-ahead, but preserves what the others destroy.
The key consequence: The AL1 is honest. When you push it too hard it tells you by breaking up — which is your cue to fix the mix, not to back off gain. Traditional limiters hide this by silently crushing everything. The developer calls this a feature, not a bug.
The plugin is optimized for transient preservation and musical honesty. Most limiters optimize for distortion reduction at any cost, including musicality. The AL1 keeps the music alive, which also means it will show mix problems rather than masking them. There is also no ceiling parameter — it is not a brick wall limiter. Output is just raw gain after all processing.
02
Controls explained

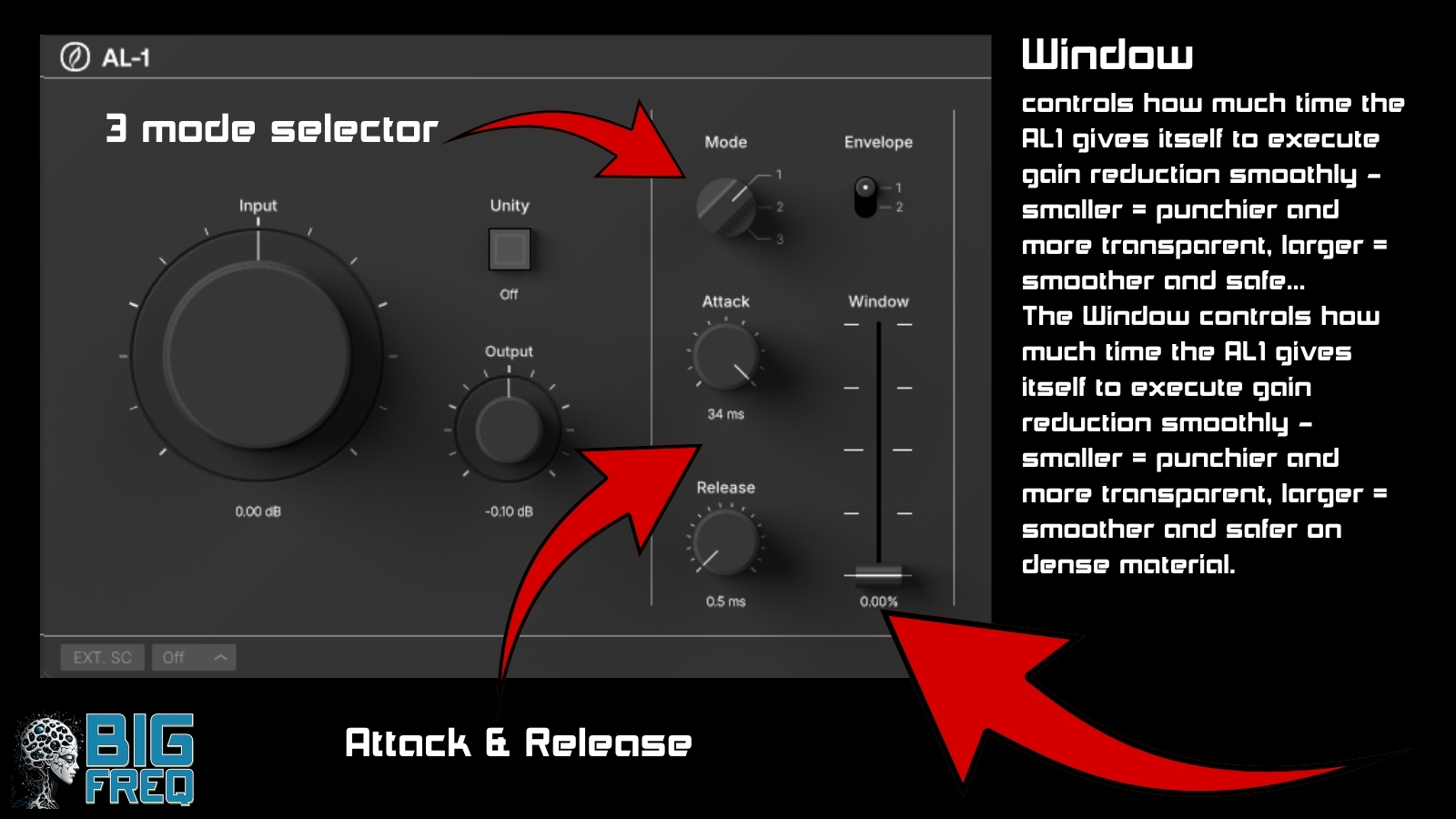

The plugin follows a left-to-right, top-to-bottom workflow. The leftmost column is the contour/shape section — everything about how gain reduction happens over time.
GAIN
Input section Drives signal into the fixed 0 dBFS threshold. The threshold never moves — you drive into it.
OUTPUT
Post-processing Raw gain applied after every bit of processing. Not a ceiling. Use the Unity button to drive and compensate simultaneously for honest A/B listening.
MODE
Physics law Selects the physics law governing how gain reduction moves from current to target. Mode 1: slew rate + jerk, aggressive, most transparent. Mode 2: critically damped, smooth like car suspension. Mode 3: hybrid, best aliasing profile.
ENVELOPE
GR curve shape The mathematical shape of the gain reduction path. Envelope 1 (raised cosine): most transparent, hi-fi, transient-forward. Envelope 2 (smooth function): center channel pushes forward, kick/snare/vocal feel more present.
ATTACK / RELEASE
Quasi-program dependent Not fixed compressor-style timings. They set a target range the AL1 tries to honor, but gain reduction demands can override. Think of them as nudging the physics parameters toward these values rather than hard-setting them.
WINDOW
Analysis context Gives the limiter a context window for detection. Default is 1/4 of the length of note C0 (~16 Hz). Turning up stretches the gain reduction curve — acts like extending the release. Low window = maximum AL1 punch but risk of distortion. Can be automated per-section.

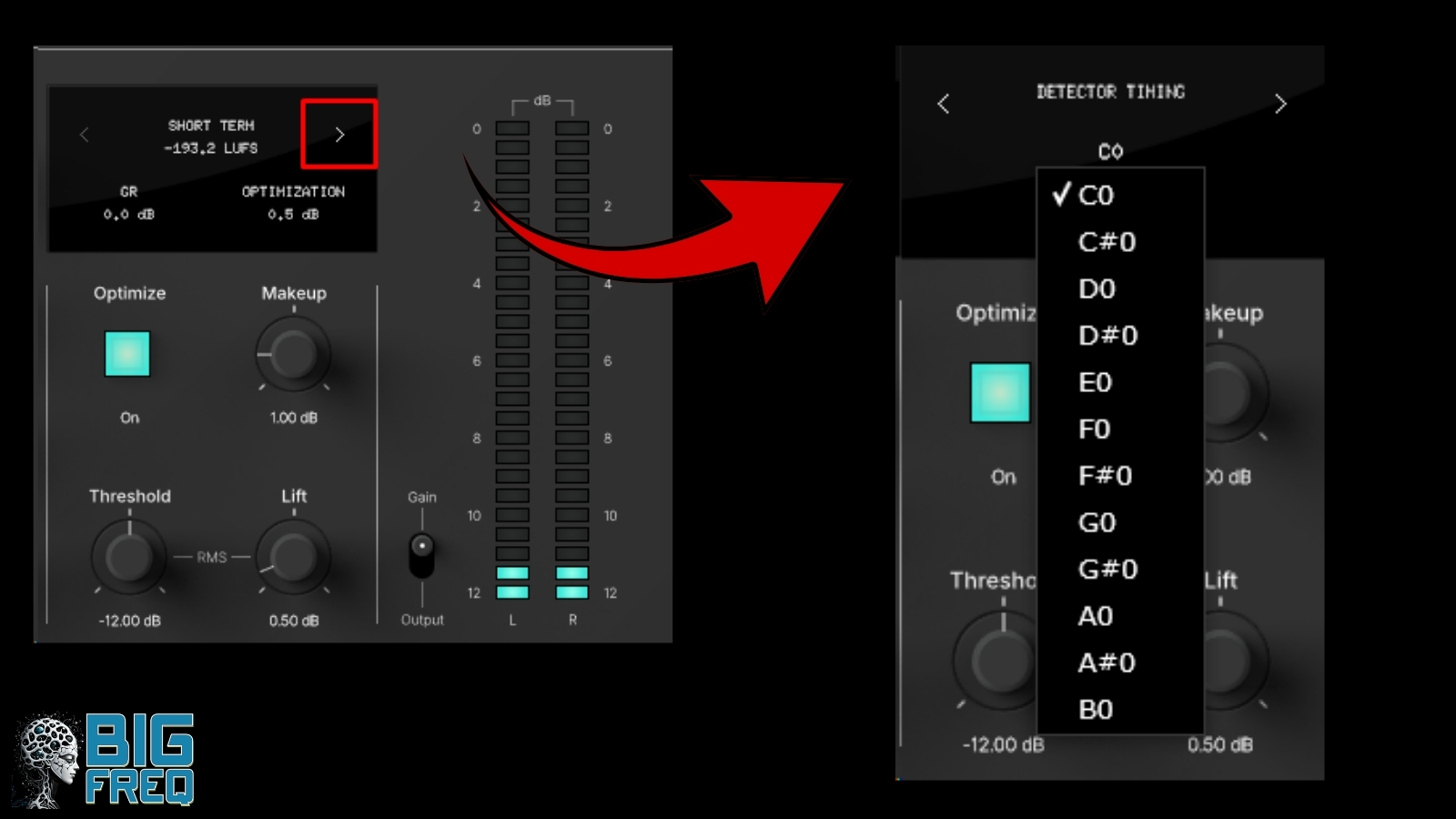

DETECTOR KEY
Hidden — arrow on LCD Changes the root note for the analysis window. Each note in the zeroth octave gives the AL1 a different character — different bass reaction, different stereo movement. C0 is default. Try D0, F0, G0, C#0. Choose strictly by ear.
03
Modes and envelopes
There are 6 combinations. You will settle on 2 or 3 favorites, but knowing each axis lets you reach for the right one faster.
Slew rate + jerk limiter. Most aggressive, most transparent, most honest. Distorts faster when pushed — which is a feature, not a flaw. Best for techno, psytrance, hard-hitting electronic. Pairs well with Envelope 1 for clean transient-forward sound, or Envelope 2 if you want center punch without changing the limiting character. The developer personally uses Mode 1 for the majority of his work.
Critically damped system. Like well-tuned car suspension — absorbs peaks without bouncing or slamming. Softer, smoother, less aliasing than Mode 1. Best for keys, soft guitars, R&B, anything where rounded dynamics feel natural. Less likely to distort under heavy gain reduction.
Hybrid of Modes 1 and 2. Uses critically damped physics but with the timing feel of Mode 1. Best aliasing profile of all three — cleaner than either alone on complex material. A solid starting default if unsure. Often works well on full mixes where you want transparency but not Mode 1’s tendency to distort under heavy gain reduction.
● Mix modes and envelopes freely. Mode 1 + Envelope 2 gives transparency with extra center focus. Mode 2 + Envelope 2 gives maximum smoothness. Mode 1 + Envelope 1 is the most honest and transient-forward combination on the plugin.
04

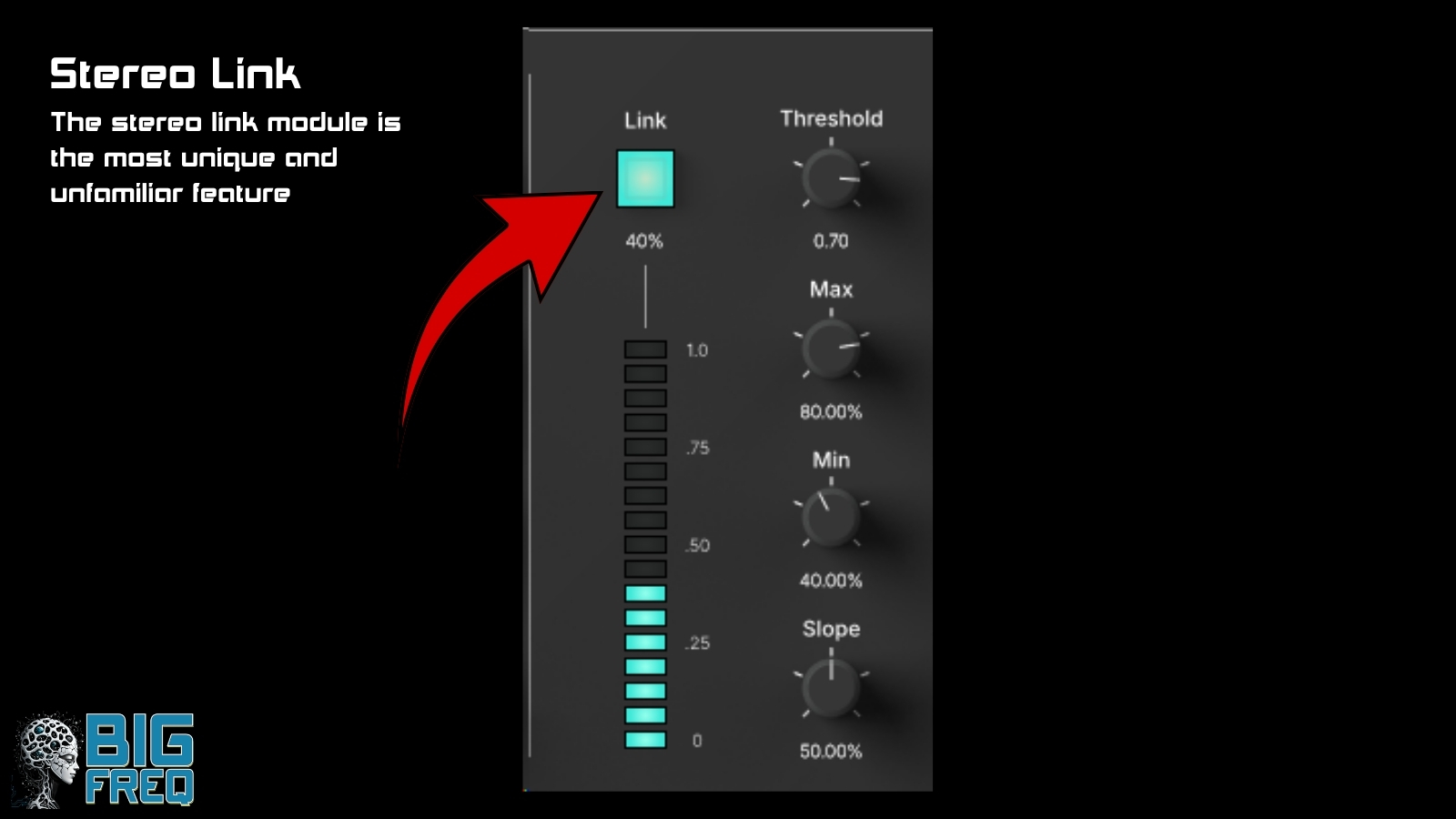

Stereo linking — the most unique feature
The AL1 runs dual mono by default. Engaging stereo link gives you correlation-based adaptive linking — something that does not exist in any other limiter.
Instead of the naive approach (take max gain reduction, apply a percentage to the other channel), the AL1 measures correlation between left and right. When the signal is highly correlated (kick, snare, vocal — mono-like center hits), linking engages. When uncorrelated (wide pads, reverb tails), the limiter backs off to dual mono and lets the sides breathe.
Why this matters in practice: On music with rhythmic movement — EDM, house, techno — the sides come alive. The kick and snare trigger focused linking while the stereo field opens up between hits. It creates a dynamic stereo width that moves with the music rather than compressing the field flat.
THRESHOLD
The correlation value where linking starts to engage. Range -1 to +1. Set around 0.6-0.8 for kick/snare to trigger it while pads breathe freely.
MIN / MAX LINK
The minimum and maximum amount of linking once threshold is crossed. Set both to 100% for fully-linked behavior above threshold. Use a range for graduated linking that scales with how mono the signal is.
SLOPE
Curve shape from min to max linking. Zero = linear. Higher = near-square-wave snap. More movement and punch = higher slope. Smoother control = lower slope.
05
Optimizer section
The optimize section sits after the limiter and uses the same physics engine in reverse — a maximizer that works in cooperation with the limiting stage. The limiter tells the optimizer exactly what its gain reduction curve looks like, so they work around each other rather than fighting.
Lift
Threshold-based gain add
When the signal falls below a set RMS level, the optimizer tries to add gain. Has a ceiling to prevent going over 0 dBFS. Use to target quiet sections or add half a dB of global density.
Makeup
Release-curve gain injection
Injects gain on the release curve of the limiter — in gaps where limiting happened but headroom remains. Makes kicks and snares pop slightly. Rarely exceeds 2.5 dB of actual effect.
● Two approaches: (1) Set lift threshold to target only quiet sections, use 1-2 dB of contextual lift. (2) Set threshold at 0 for always-on, keep lift amount to 0.5-0.8 dB max or it starts to feel blown out. Makeup of 0.5-1 dB after heavy limiting restores snap.
06
In-mix use cases — single channels
With only 1.9 ms of latency and physics-based gain reduction that preserves transients, the AL1 is genuinely useful across the whole session. Here is how to use it before the mastering stage.
🎙
Lead vocal — transparent peak control single channel core use
+
After your compressor chain is done, the vocal still has occasional peaks that catch you off guard in the mix. Instead of automating volume on every spike, place the AL1 at the end of the chain as an honest peak limiter. Keep it subtle — you want peak control, not the sound of a second compressor.
Gate › EQ › Compressor › De-esser › AL1
MODE
2 or 3 smoother physics, less aggressive on vocals
ENVELOPE
2 pushes center presence, vocal stays forward
GAIN RED.
1-3 dB max if hitting more, fix the compressor first
WINDOW
default raise slightly if you hear grit on consonants
LINK
off mono signal, no point linking
MAKEUP
0.5 dB restore snap lost from limiting action
What you gain: Mode 2 + Envelope 2 tightens peaks while subtly pushing the vocal forward in the center field. More musical than a generic brick wall ceiling and far less work than manual volume automation on every spike.
The kick is where traditional limiters cause the most damage. Brick wall look-ahead eats the initial transient — that fast 5-15 ms crack that gives the kick punch. The AL1 handles this completely differently and controls peak level without inverting or softening the transient.
Transient shaper › EQ › Compressor › AL1
MODE
1 most transparent, preserves the transient snap
ENVELOPE
1 raised cosine, hi-fi, nothing gets rounded off
WINDOW
low if it distorts, bump window slightly — don’t over-correct
DETECTOR KEY
C#0 or D0 try both, different bass reactions. Use ears only.
GAIN RED.
2-4 dB more than this on the kick channel = fix the source
The distortion test: If Mode 1 breaks up on a kick, that is the AL1 telling you there is a sub frequency or transient problem at the source. Pull 20-30 Hz before retuning the limiter. The honesty of Mode 1 is diagnostic, not a problem.
🎶
Bass / sub synth — ceiling without mud
single channel
+
Bass synths and sub layers often have inconsistent peak levels, especially with movement or portamento. Compressors on sub can suck the energy out. The AL1 as a transparent peak limiter controls the ceiling without adding pumping or movement artifacts.
longer moving bass needs breathing room between peaks
LINK
try engaged if stereo bass, linking creates focus on main hits
Why not just use a compressor here? Compressors on sub add movement — they respond to the waveform envelope. The AL1 as a limiter only reacts to peaks, so the natural movement and character of the bass stays intact. It is a ceiling, not a shaper.
🎹
Lead synth — controlling peaks without killing movement
single channel
+
High-energy synth leads in psytrance and techno often have wildly inconsistent peak levels, especially with filter sweeps or FM modulation. Rather than riding faders on every section, the AL1 handles unpredictable peaks while leaving texture and movement intact.
MODE
1 or 3 mode 1 for aggressive attack feel, mode 3 for smoother response
automate raise 20-30% on peak sections, return to default elsewhere
GAIN RED.
3-6 dB reasonable on a lead synth with heavy filter automation
● Window automation is the power move here. Automate it up by 20-30% on the heaviest sections, return to default elsewhere. You get the AL1 transient character everywhere and no distortion on the peaks that matter.
07
Group bus and mastering use cases
On a group bus the AL1 does something more interesting than just peak control — shared limiting behavior with stereo linking engaged starts gluing elements together. On the mastering bus it handles 6 or more dB of gain reduction while keeping the music alive.
🏅
Drum bus — glue and transient focus
group bus core use
+
Classic bus compression changes the character of the kit, especially attack and release of individual hits. The AL1 on the drum bus gives you glue and cohesion through limiting physics instead, so the kit’s natural dynamics stay intact while the bus as a whole gets tighter and more focused.
MODE
1 maximum transparency, transients must survive the bus
ENVELOPE
1 hi-fi, nothing softened
LINK
engaged correlation-based linking focuses stereo kit image on impacts
LINK THRESH
0.6-0.8 engage on kick/snare, not on every hi-hat
GAIN RED.
2-4 dB glue territory, not heavy limiting
MODE
2 or 3 live kit needs smoother physics to feel natural
ENVELOPE
2 center focus helps snare and kick sit in the room
RELEASE
medium-long let the kit breathe between hits
SLOPE
lower values smooth linking transition on overheads
The linking advantage on drums: Stereo link engaging on kick/snare hits (highly correlated, near-mono) and releasing on hi-hats and overheads (wide, uncorrelated) creates a rhythmic stereo movement that makes the kit feel three-dimensional — no widener plugin needed.
🎵
Mix bus during mixing — pre-master reference limiter
mix bus pre-master
+
Place the AL1 on the mix bus during the mix session — not to master, but to make mixing decisions with a realistic loudness ceiling in place. This prevents the classic trap of mixing loud, then discovering the master sounds completely different.
All buses › Mix bus EQ › AL1 (reference) › Monitoring
UNITY
use it drive and compensate simultaneously for honest A/B
MODE
3 most balanced for mix reference monitoring
GAIN RED.
3-6 dB approximately where the mastering limiter will land
BYPASS
frequently compare limited vs unlimited often. Don’t mix exclusively through it.
△ Export the mix without the AL1 on it. This is a monitoring reference only. Using it during the session trains your ears to make decisions that survive mastering, rather than chasing headroom that disappears later.
💾
Mastering bus — electronic / psytrance / techno
mastering primary use
+
This is the primary intended context. The AL1 was developed by listening to hundreds of hours of music and blind A/B testing against 10 reference limiters. It handles 6 or more dB of gain reduction while keeping the music alive in a way no look-ahead limiter can match.
MODE
1 or 3 mode 1 for harder, punchier material
ENVELOPE
1 keep transients, hi-fi character
LINK
engaged threshold so kick/snare triggers center focus
GAIN RED.
6+ dB the AL1 handles this without killing the life of the track
Based on the developer’s own workflow and the left-to-right design logic. A starting framework — deviate from it as the material demands.
1
Start with Mode 3, Envelope 1. The most forgiving defaults. Go more aggressive (Mode 1) or softer (Mode 2 + Envelope 2) once you hear how the material responds.
2
Drive gain until you hit 4-8 dB of limiting. Use the VU output meter, not LUFS or peak readings. Set reference to -6 dBFS and aim for -4 to -7 on the VU needle. Stop chasing numbers.
3
If the limiter breaks up on a section, resist backing off the gain. Ask what in the mix is causing it. Cut sub-frequencies, deal with a harsh transient at the source, or automate the window up for that section only.
4
Engage stereo linking. Start with threshold around 0.7-0.8 correlation, min link 40%, max 80%. Listen to how kick and snare focus compared to the wide elements. Adjust slope to control how fast the snap happens.
5
Try the detector key (hidden feature — arrow on the LCD). Cycle through C0, D0, F0, G0, C#0. Each gives a different relationship to bass frequency response. Choose strictly by ear.
6
Add lift sparingly: 0.5 dB with threshold at 0 for global density, or higher threshold to target a specific quiet section. If it pumps, pull it back.
7
Add makeup gain after heavy limiting to restore snap. Usually 0.5-1 dB is all you need to feel the kick punch back through the limiting action.
8
On presets: the AL1 ships without genre presets intentionally. A limiter this responsive to material needs to be set by ear for the specific song. Knowing the character of each mode and envelope combination is your preset.
Final note from the developer: Limiters are fascinating because a 1.1 dB change or one tick on a timing parameter changes the feeling of the entire song. Everything changes. It is the most powerful tool to tweak in mastering because you can almost do a full master just by working the limiter — if the mix is in good shape to begin with.
